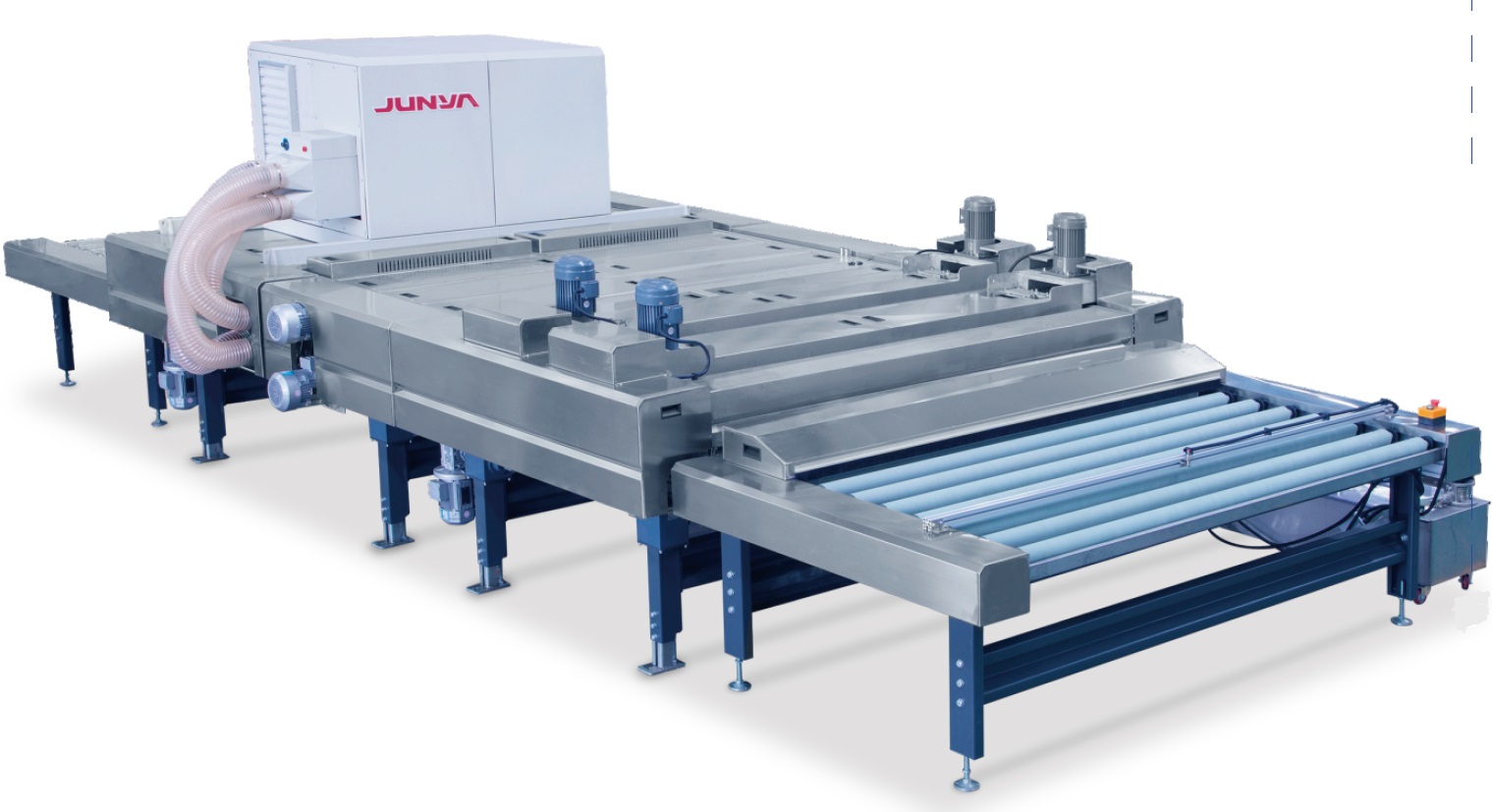

JYX-2500CD GLASS WASHING MACHINE
1. Horizontal glass washing machine is used for flat glass, especially for glass before coating, mirror coating and printing.
2. The machine mainly consists of loading section, washing section, drying section and unloading section.
3. Main drive is gear drive and inverter speed control.
4. The machine is designed as four-step washing and equipped with three pairs of brushes and four tanks. The machine also has two pairs of single side disk brushes and high pressure pump.
I.Product Characteristics
1. Horizontal glass washing machine is used for flat glass, especially for glass before coating, mirror coating and printing.
2. The machine mainly consists of loading section, washing section, drying section and unloading section.
3. Main drive is gear drive and inverter speed control.
4. The machine is designed as four-step washing and equipped with three pairs of brushes and four tanks. The machine also has two pairs of single side disk brushes and high pressure pump.

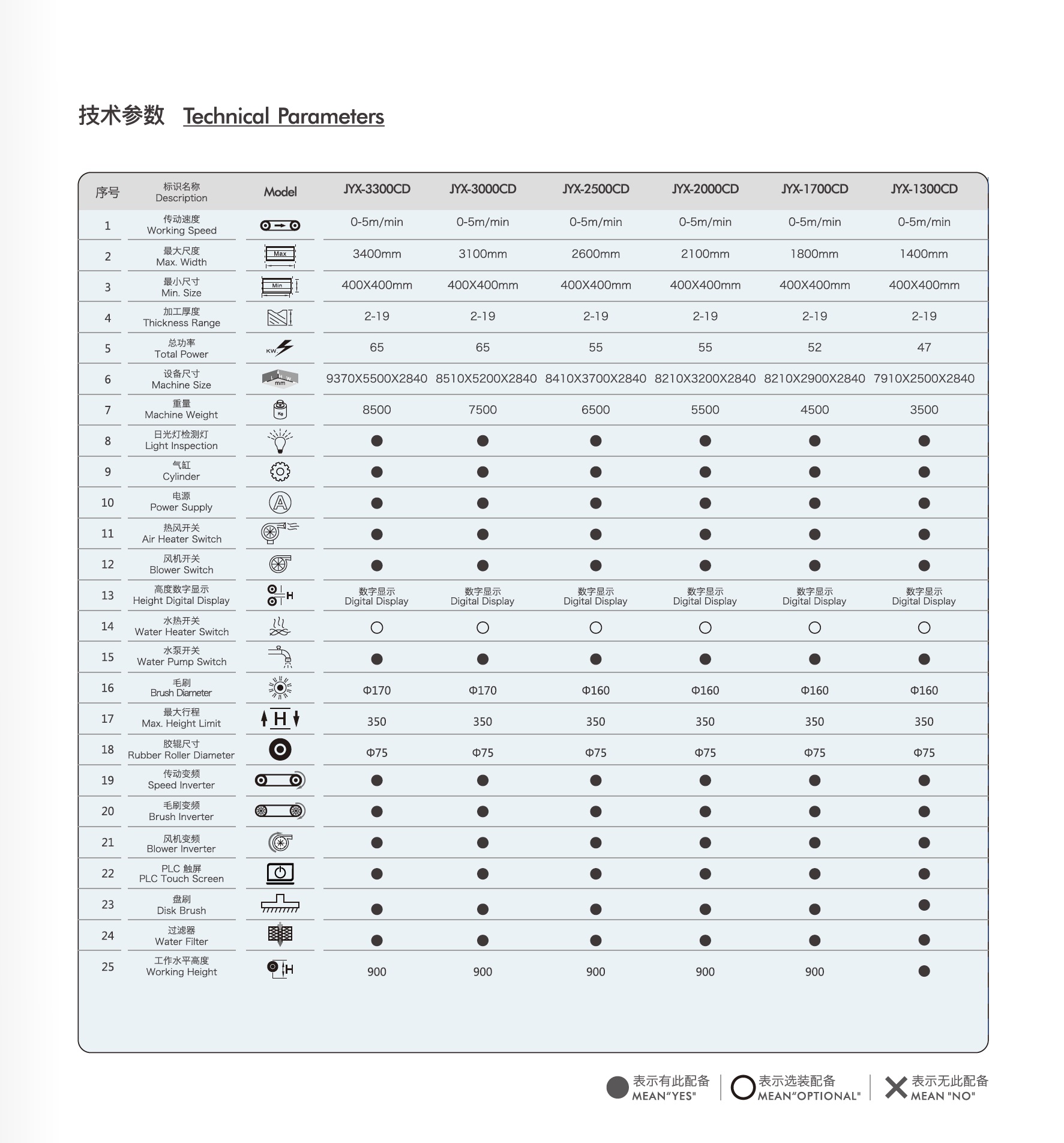

II.Technical Parameters

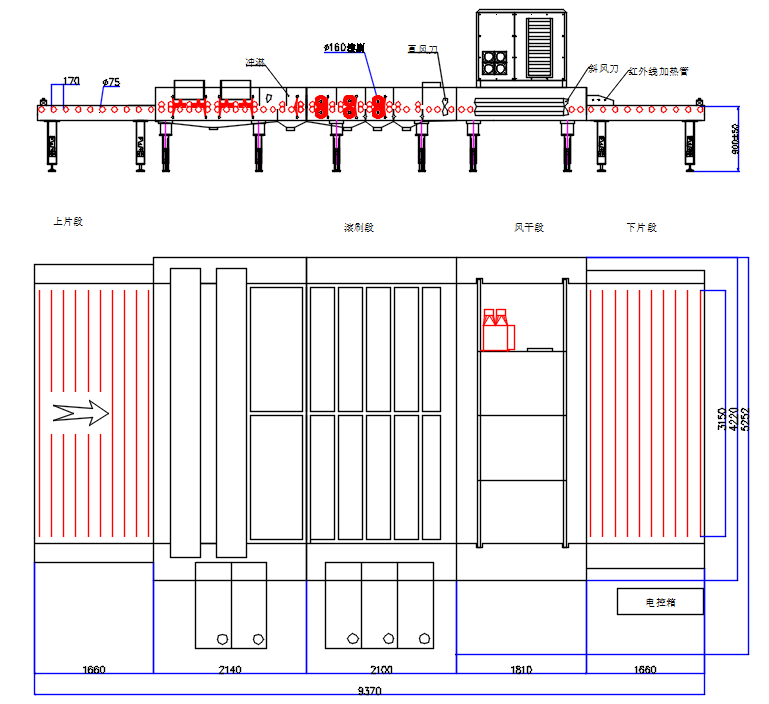

III.Machine Layout
