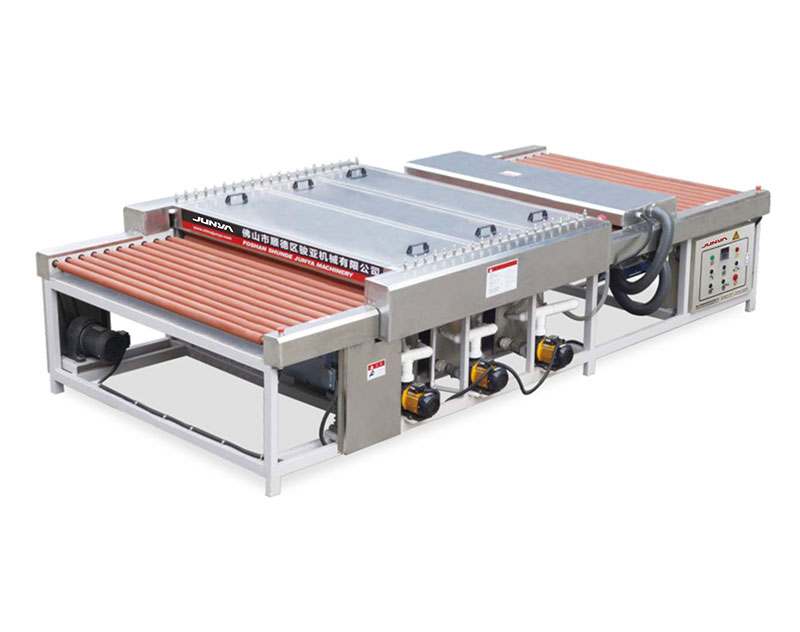

JYX-1600C3 GLASS WASHING MACHINE
1. Horizontal glass washing machine is used for flat glass washing and drying.
2. The machine mainly consists of loading section, washing section, drying section and unloading section.
3. Main drive is chain drive and inverter speed control.
4. The machine is designed as three-step washing and equipped with three water tanks and high pressure pump.
5. The machine has six pairs of brushes and five pairs of sponge rollers.
I. Structure Features
1．1 Horizontal glass washing machine is for washing and drying flat glass, which is applied for edged glass, glass before packing, glass before and after screen printing.
1．1 The machine mainly consists of loading section, washing section, drying section and unloading section.
1．2 Main drive is chain drive, frequency speed control.
1．3 All protective covers, metal panels are made of stainless-steel material.
1．2 Water tanks are welded with SS material, and have filtering mesh.
1．3 Transmitting rubber rollers of the machine use top-grade nitrile rubber (Full cover of vulcanized rubber).
1．4 The machine has 3 stage washing with 3 water tanks and high-pressure water pump.
1．5 The machine has six pairs of brushes, four pairs of sponge rollers and three water tanks.
1．6 The machine has wide heating section (500mm)with centrifugal fan.
1．7 All bearings on the machines are customized to avoid problem of grinding roller shaft and change bearing frequently.The machine has separated aluminum frame for sponge roller changing convenience.
1．4 Working Environment: ordinary workshops or dust-free workshops
1．5 Machine noise level: less than 85DB; Measuring Method: test at 1m distance from loading and unloading section.
1．6 Safety certificate standard: 3C standard.

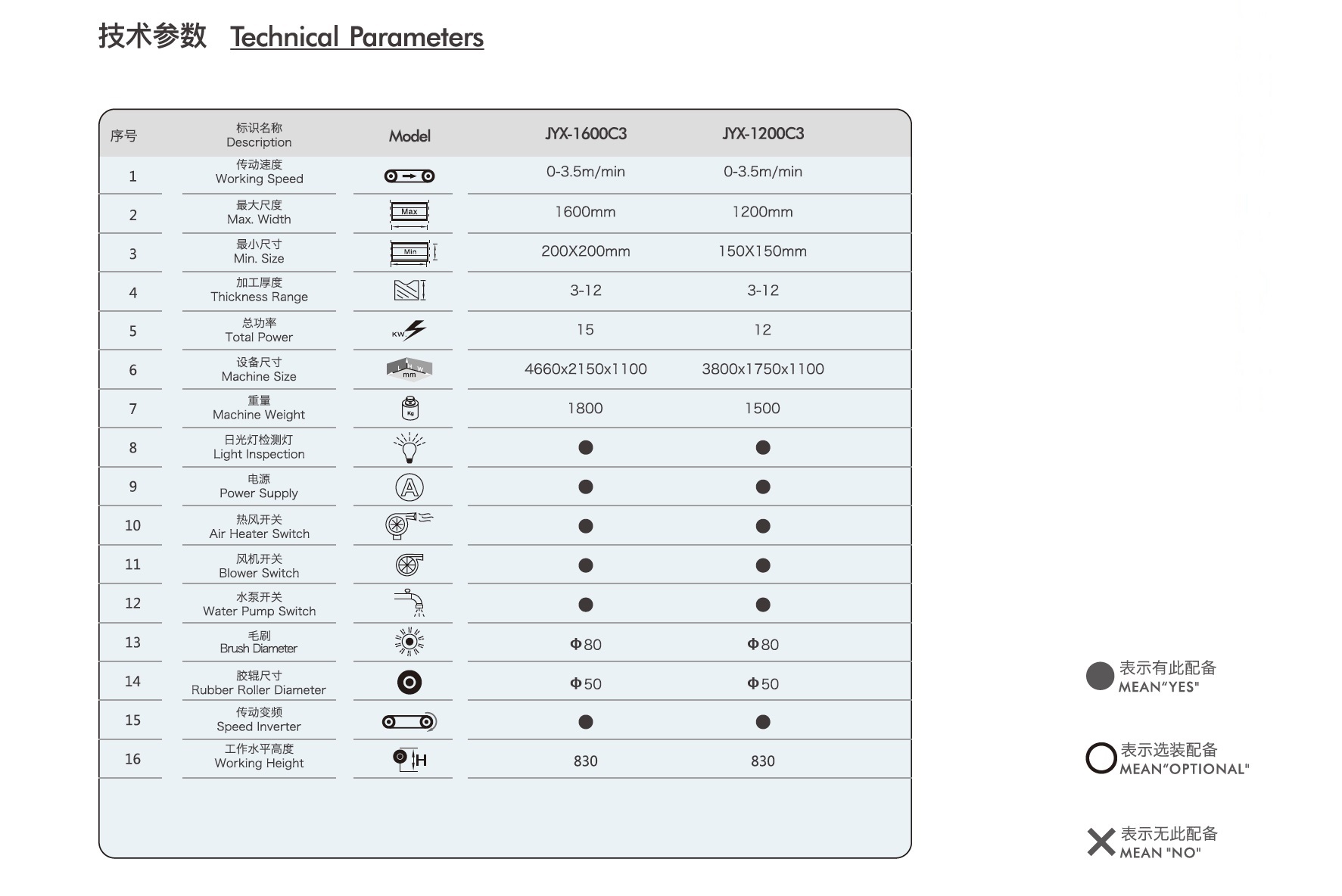

II. Technical Parameters

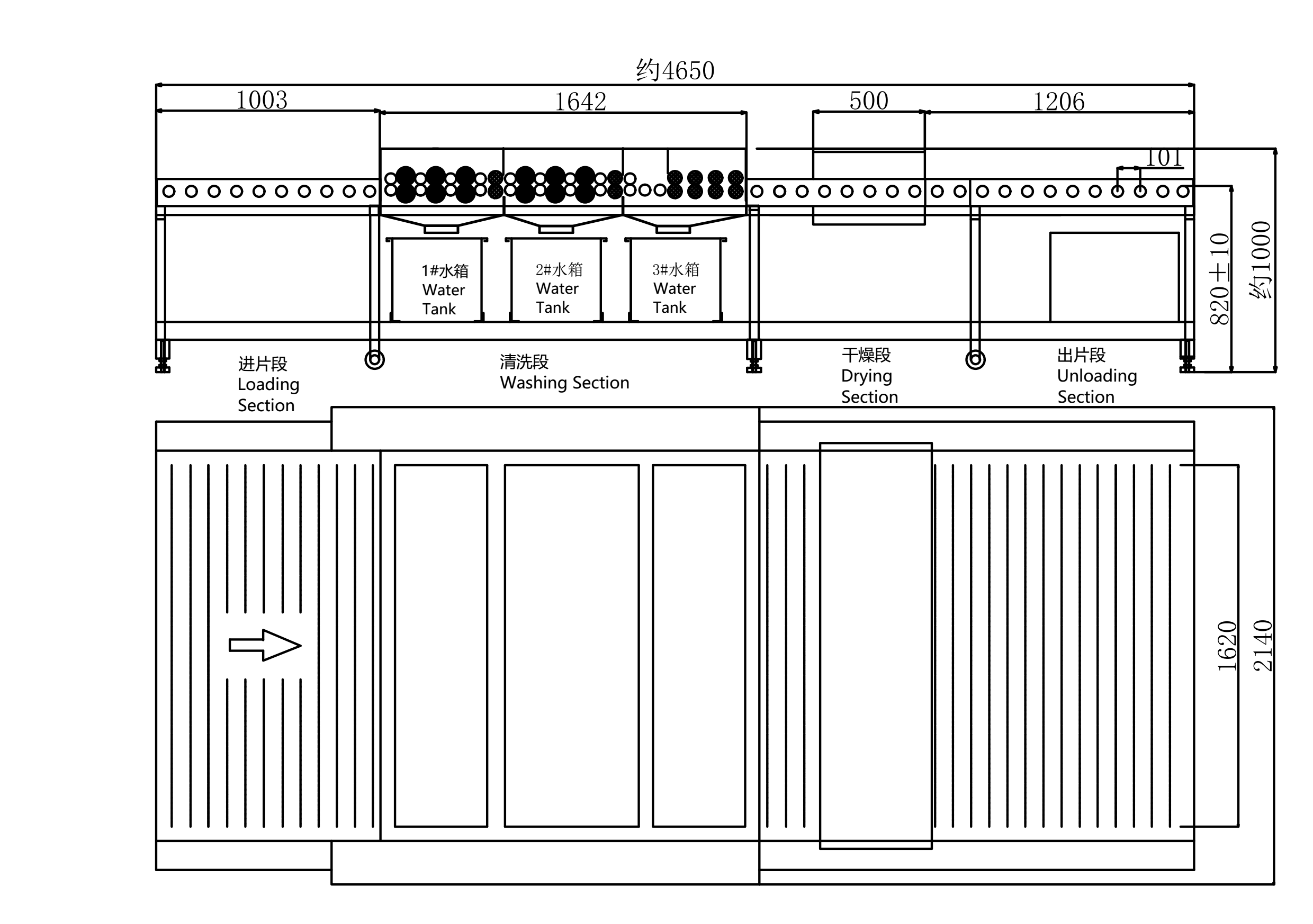

III.Machine Layout
