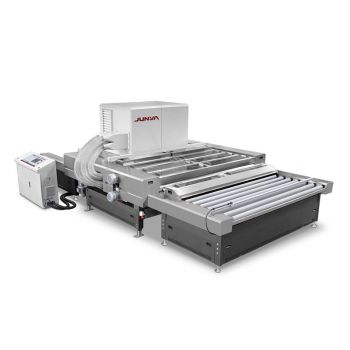

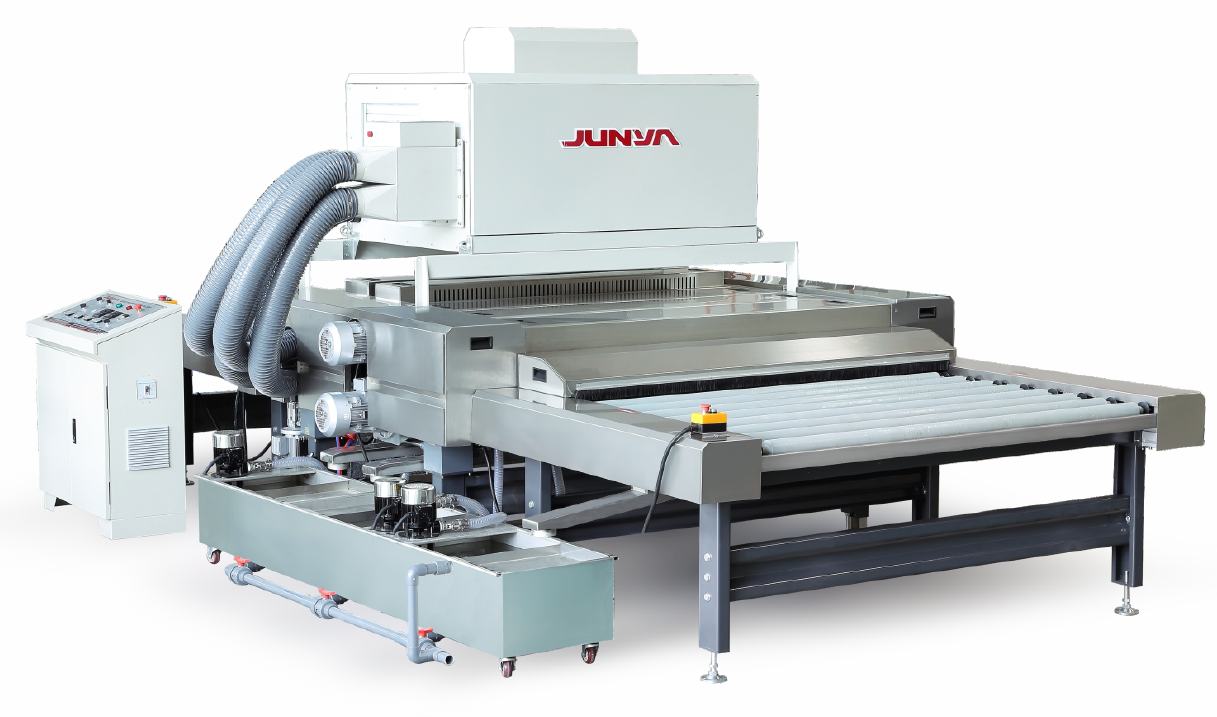

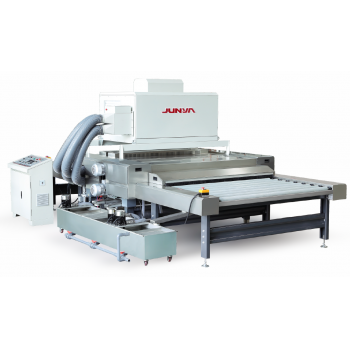

JYX-2500C GLASS WASHING MACHINE (BEFORE TEMPERING)
1. Main drive is gear drive, inverter speed control and digital display. Brush rollers of washing section are drove by upper and lower motors with belts, which has smooth speed and long service life.
2. Washing section and drying section can be rose up max. to 350mm as a whole, which is convenient to wash and maintain.
3. The machine has three pairs of brushes , which can be used for washing LOW-E glass, ordinary coated and solar glass.
4. The machine has two pairs of air knife which has large wind and good drying effect with the air heating system.
5. The machine structure is aluminum alloy assembled structure.
I. Machine Structure Features
Ø The machine is for washing glass before tempering, after edging and before screen printing.
Ø The machine structure is aluminum alloy assembled structure, never scrap, with permanent service life. Other structure parts are top- grade powder coated which is better than paint and make machine surface corrosion resistance
Ø All transmitting rubber rollers of the machine are vulcanized rubber with SS304 shaft (They are forbidden to contact with acidic liquids).
Ø Washing section and other parts contacted with water are made of stainless steel material.
Ø Washing section and drying section can be lift up max.to 350mm as a whole, which is convenient to wash and maintain.
Ø The machine has three pairs of brushes (φ160mm) with SS304 shaft, Which Can wash LOW-E glass, ordinary coated and solar coated glass without any scratch on surface.
Ø The machine has two pairs of air knife made of stainless steel and aluminum, which has strong wind and good drying effect. The machine has air heating system.
Ø Blower has air filter in air inlet, big airflow and excellent drying effect. The whole blower is installed on the top of machine to save space and it can be risen up together with washing and drying section, and the air filter is on the side for convenient inspection and cleaning. Air filter is need to clean every 7 days.
Ø Main drive is gear drive, frequency speed control and digital display. Brush roller drive of washing section is drove by upper and lower motors with separate belts. With the advantages of automotive pulleys without tension wheel, flexible brush rotation, high precision, etc., brushes have smooth speed and long service life and can wash special glass which needs high quality clearance.
Ø The machine is control by mechanical button and with digital display. Connected frequency conversion, other machine can control washing machine speed.
Ø Water tanks of machine are movable and put on side, which is easy for cleaning, changing water, checking, make cleaning effect better.
Ø With blower inverter in control cabinet and with sensor at loading section: for power saving

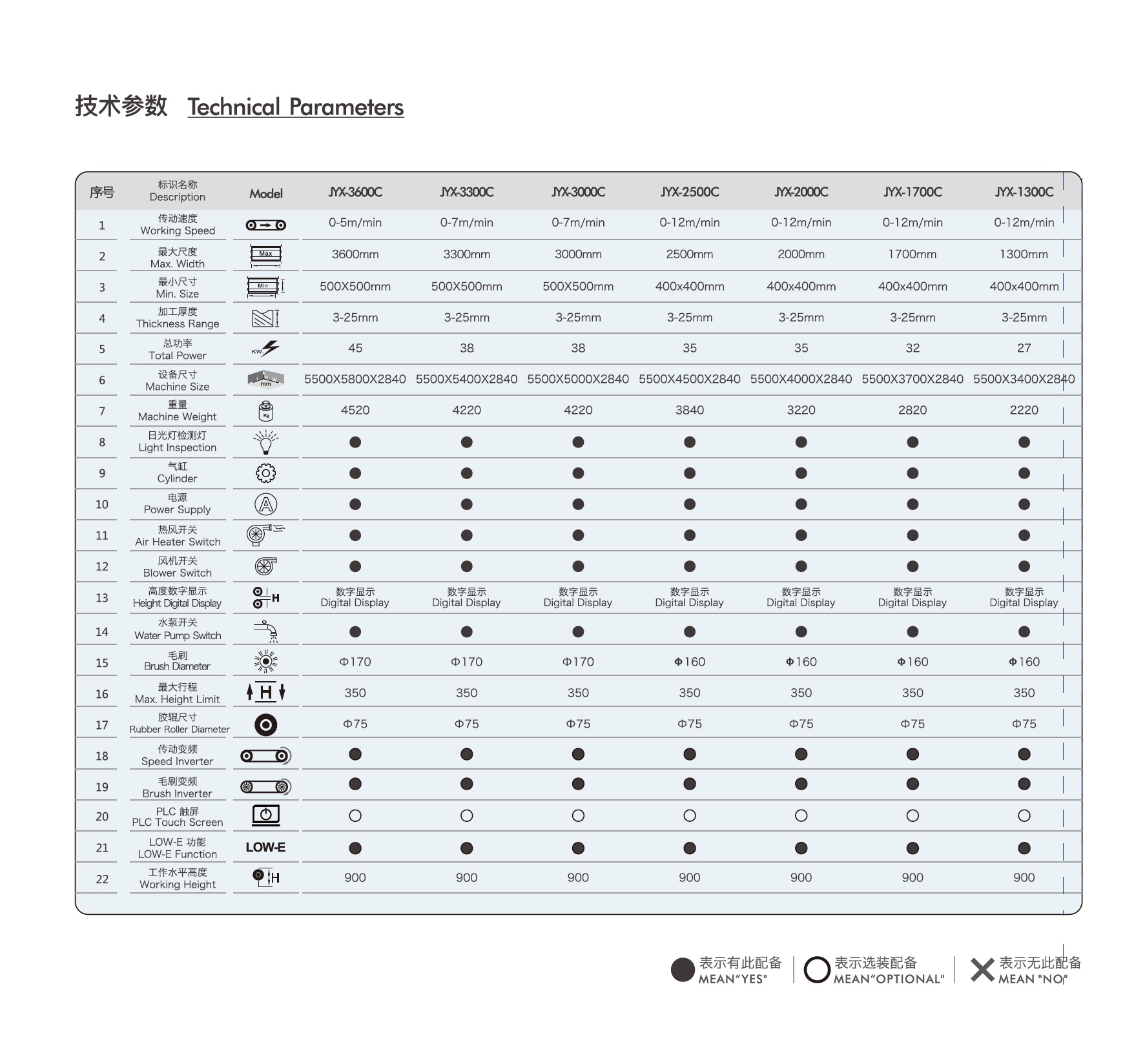

II. Technical Parameters

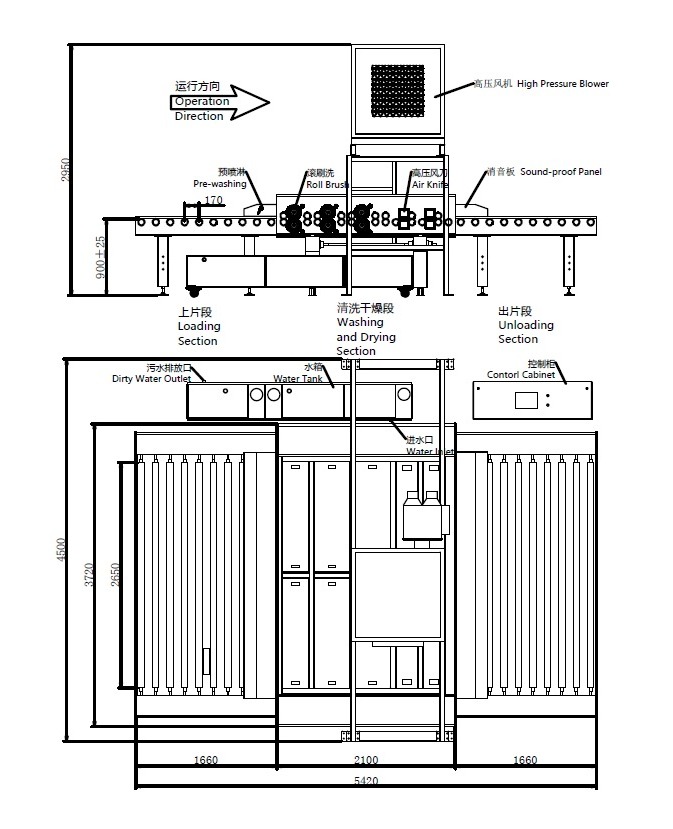

III.Machine Layout
