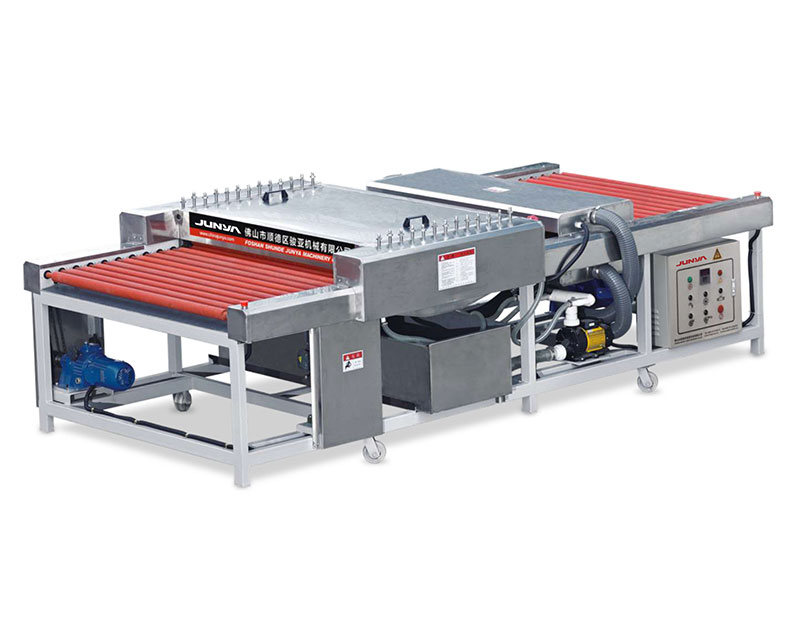

JYX-1600C GLASS WASHING MACHINE
1. Horizontal glass washing machine is used for flat glass washing and drying.
2. The machine mainly consists of loading section, washing section, drying section and unloading section.
3. Main drive is chain drive.
4. The machine has four pairs of brushes, four pairs of sponge rollers and one tank.
I. Structure Features
1．1 Horizontal glass washing is for washing and drying flat glass, which is applied for edged glass, glass before packing, electronic glass.
1．2 The machine mainly consists of loading section, washing section, drying section and unloading section.
1．3 Main drive is chain drive
1．4 All protective covers, metal panels and water support plate of loading section are made of stainless-steel material.
1．5 Transmitting rubber rollers of the machine use top-grade nitrile rubber (Full cover of vulcanized rubber).
1．6 The machine has four pairs of brushes, four pairs of sponge rollers and one tank
1．7 All bearings on the machines are customized to avoid problem of grinding roller shaft and change bearing frequently.
1．8 Working Environment: ordinary workshops
1．9 Machine noise level: less than 85DB; Measuring Method: test at 1m distance from loading and unloading section.
1．10 Safety certificate standard: 3C standard.

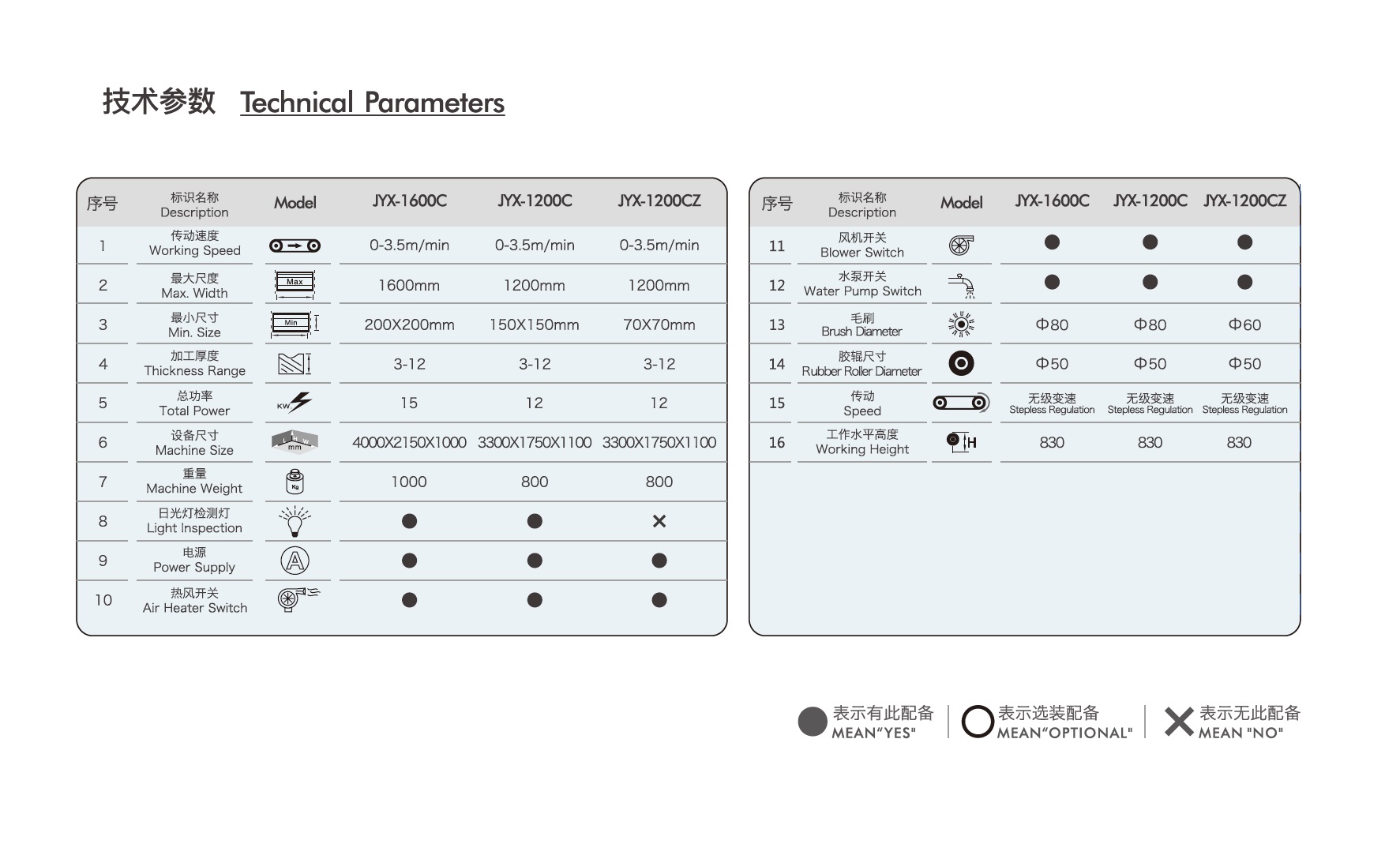

II. Technical Parameters

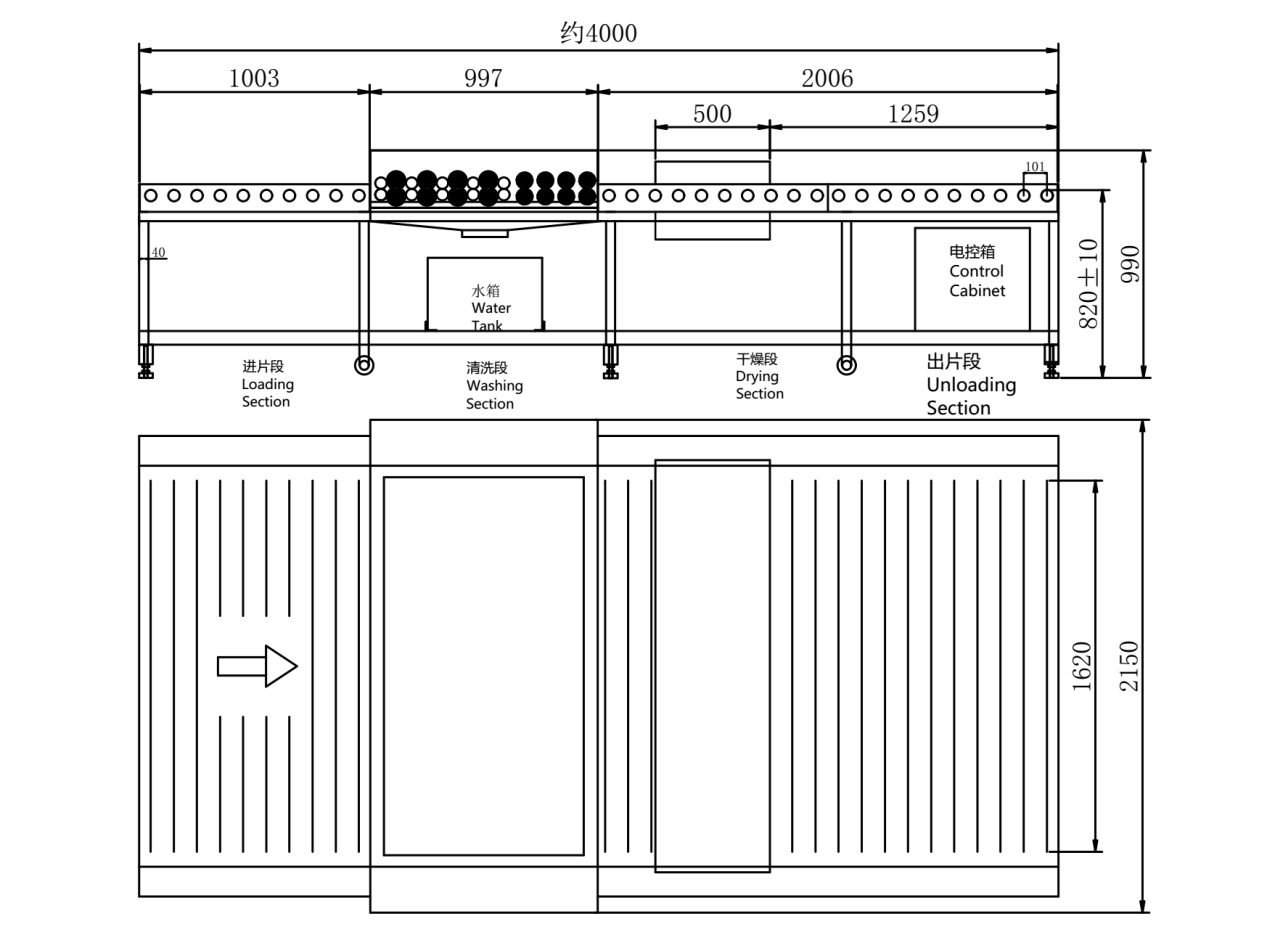

III.Machine Layout
