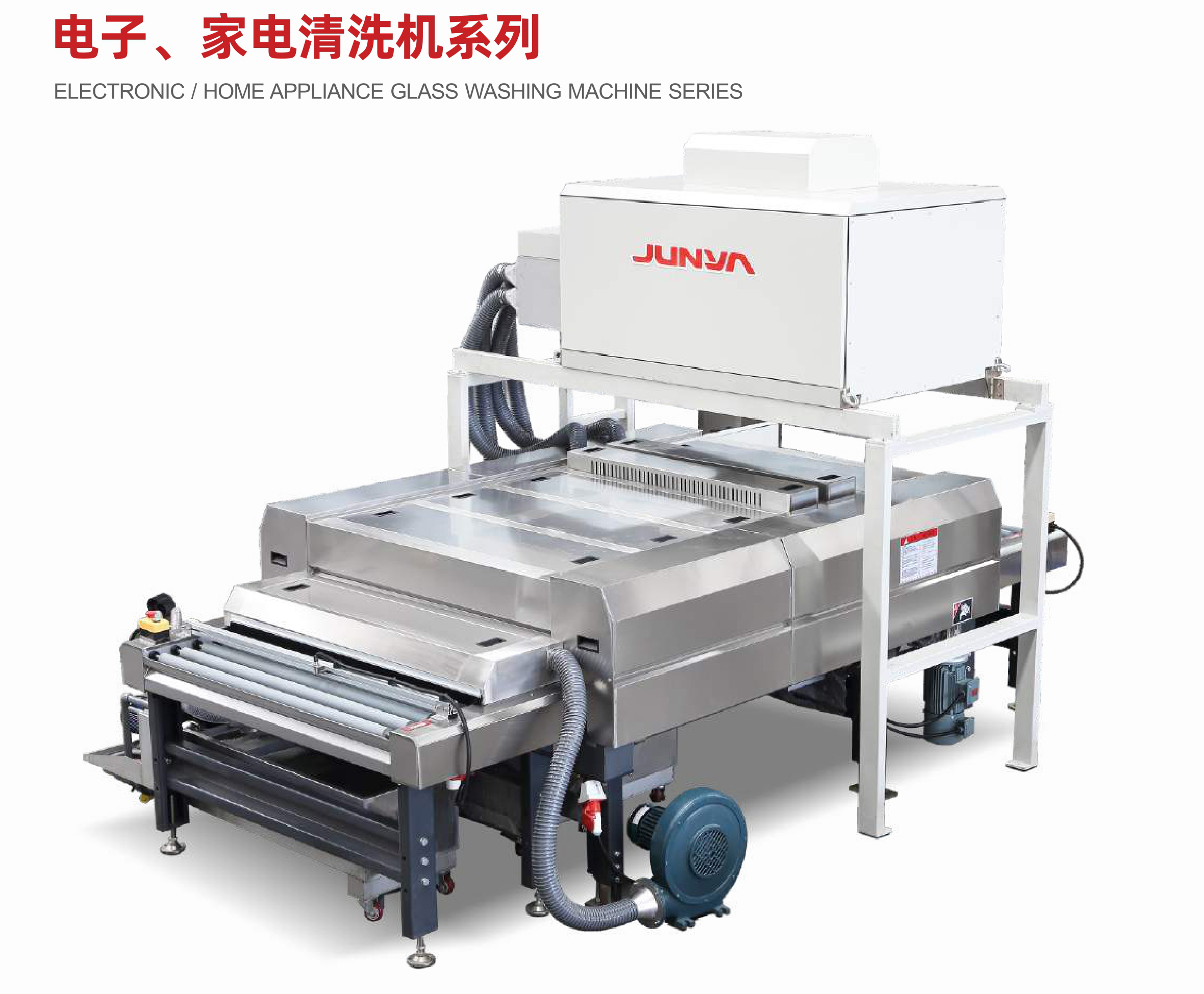

Electronic/Home Appliance Glass Washing Machine
1. Main drive is gear drive, inverter speed control and digital display. Brush rollers of washing section are drove by upper and lower motors with belts, which has smooth speed and long service life.
2. Washing section and drying section can be rose up max. to 350mm as a whole, which is convenient to wash and maintain.
3. The machine has hour pairs of brushes, four pairs of sponge rollers and three tanks.
4. The machine structure is aluminum alloy assembled structure.
I.Structure Features
Ø The machine structure is aluminum alloy assembled structure, never scrap, with permanent service life. Other structure parts are top- grade powder coated which is better than paint and make machine surface corrosion resistance
Ø All transmitting rubber rollers of the machine are vulcanized rubber with SS304 shaft (They are forbidden to contact with acidic liquids).
Ø Pre-washing section has 2 rows up and down spray nozzles
Ø Washing section and other parts contacted with water are made of stainless steel 304 material.
Ø Washing section and drying section can be lift up max.to 350mm as a whole, which is convenient to wash and maintain.
Ø The machine has four pairs of brushes (φ90mm) with SS304 shaft. The last two top brushes are low-e brushes for washing low-e glass.
Ø The machine has 3 pairs of air knife which has large wind and good drying effect. The machine has air heating system for second blower
Ø Blowers have air filter in air inlet, big airflow and excellent drying effect. The whole blower is installed on the top of machine to save space and it can be risen up together with washing and drying section, and the air filter is on the side for convenient inspection and cleaning. Air filter is need to clean every 7 days.
Ø Main drive is gear drive, frequency speed control and digital display. Brush roller drive of washing section is drove by upper and lower motors with separate belts. With the advantages of automotive pulleys without tension wheel, flexible brush rotation, high precision, etc., brushes have smooth speed and long service life and can wash special glass which needs high quality clearance.
Ø The machine is control button switches. Can connect with other machines through frequency converter.
Ø Water tank in 3 sections and are movable and put on side, which is easy for cleaning, changing water, checking, make cleaning effect better.
Ø Option 1.: With air heater and the last section of water tank with 1x 10kw water heater
Ø Option 2: SIEMENS PLC and MCGS touch screen control Convenient for connection with other machines in the line.
Ø Option 3: with blower VDF in control cabinet and sensor in loading section for power saving

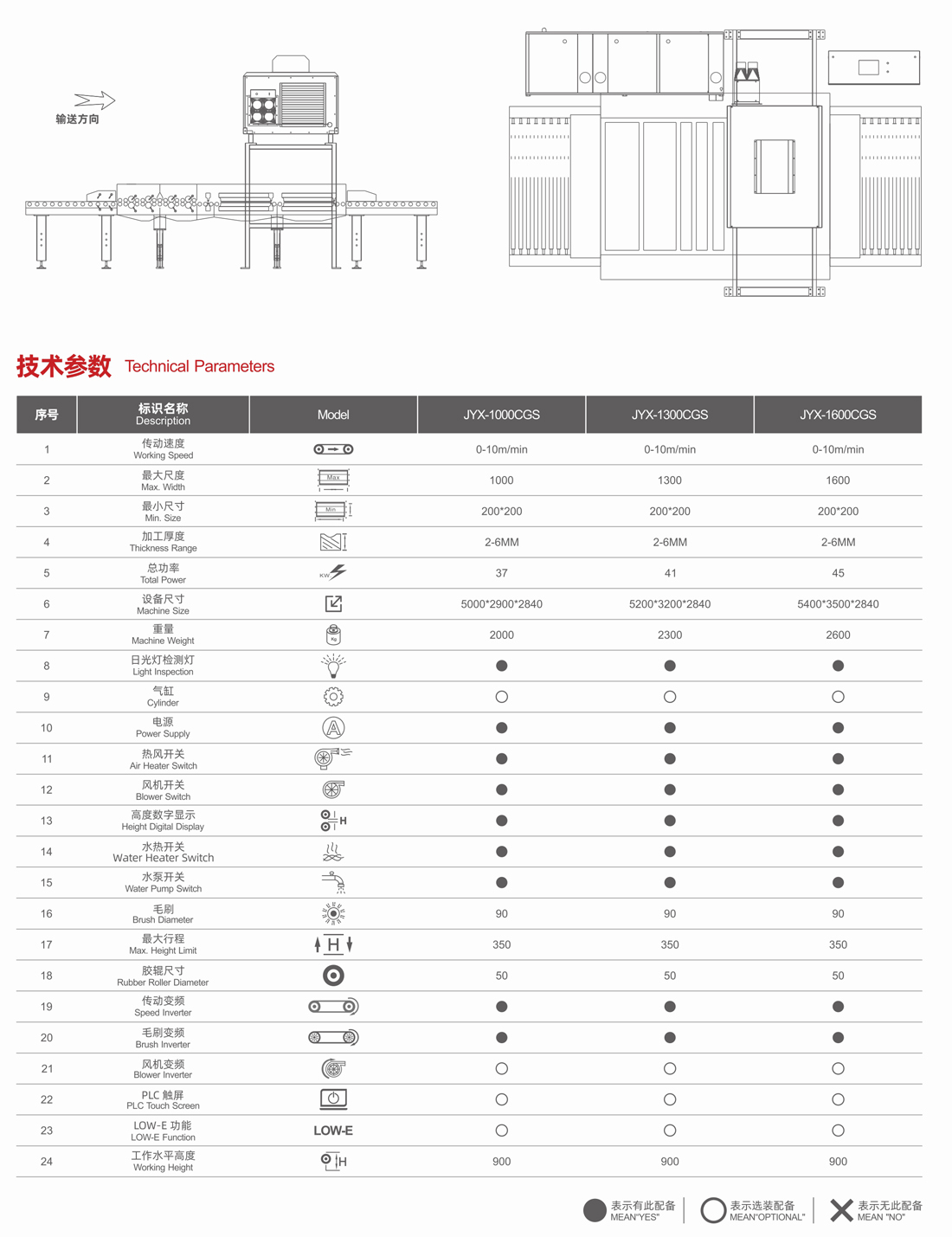

II.Machine Layout and Technical Parameters
